Venture overview

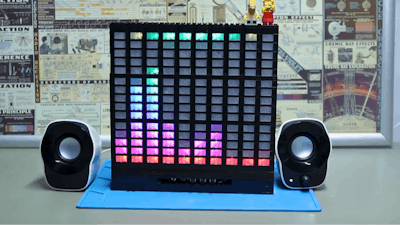

All wave varieties are literally a mix of a number of frequencies that, via constructive and harmful interference, come collectively to kind a single, extra complicated wave. Spectrum analyzers are instruments which permit us to see what frequencies are within the wave together with their amplitudes, and they’re important in so many various fields, however particularly music. Waterfall shows, or these grids of LEDs which mild as much as signify the bands of frequencies and fall after a delay, are generally used, and that is precisely what Mark Donners from element14 Presents wished to construct, besides this time, it will be constituted of Lego bricks.

Establishing the Lego body

The frequency analyzer show enclosure is constituted of three important elements: the bottom that accommodates the PCB and management board, a grid of clear bricks via which the LEDs shine via, and the backing to cover the uglier circuitry within the again. Almost every part was constituted of opaque black bricks except for the entrance plate, and full directions might be present in Donners’ write-up on the element14 Current web site.

Designing a schematic

As a result of this venture wanted to shortly reply to incoming analog inputs and show the outcomes, a lot of the work in figuring out the make-up of frequencies is dealt with by discrete elements. First, the person can choose through a swap between both the onboard analog microphone ingredient or the line-in audio jack. From right here, the alerts are amplified and despatched to a complete of ten band filter circuits which extract the goal vary of frequencies from the waveform and make them obtainable to an analog multiplexer. This needed to be finished as a result of the microcontroller, on this case an ESP32, has a restricted variety of analog-to-digital conversion pins, and thus wanted a number of extra to learn the alerts.

Customers are capable of management what the spectrum analyzer does through a management panel containing two buttons and three potentiometers, and energy is delivered via one other circuit which accepts 12V and regulates it right down to 5V.

PCB meeting

As a result of giant variety of discrete elements, it took Donners some time to position and solder every half. To forestall this subject, he really useful that fellow makers both use solder paste/sizzling air rework station or to easily get their boards from the fabricator pre-assembled. After the primary board and auxiliary management board have been completed, he wired them collectively through a set of twisted-pair wires.

Lights, changes, and extra

The lighting system was added by first taking a string of individually addressable 5V LEDs and slicing them to the peak of the grid. From right here, Donners aligned it to the right spacing and tacked every one into place earlier than soldering wires between every strip in sequence, snaking vogue. In the meantime, the management board was nested inside the bottom compartment and linked to the adjustment panel within the entrance. With it, customers can set the brightness, sensitivity, hold-time, and set the mode.

The Arduino sketch

Donners’ use of an ESP32 not solely meant that the system might shortly reply to modifications in inputs, however that it additionally had WiFi, Bluetooth, and loads of RAM. This system begins by initializing the LED string and an online interface in order that values might be seen in real-time by an online browser. After this, the loop frequently cycle via the ten bands, reads them, and decides how the matrix ought to look when accounting for the present mode and settings.

Watch it go

As seen within the demonstration portion of the construct log video, the spectrum analyzer has a clear, responsive look that may be simply modified via both software program (for the LEDs) or by altering how the enclosure itself was constructed. To learn extra, you could find extra info right here in Donners’ weblog submit on the element14 Group.
